15噸DLER環鏈電動葫蘆穿軸式
15噸DLER環鏈電動葫蘆穿軸式產品參數：
|
MODEL型號 |
DLER15-06 |
||
|
DLER 1/DLER2 |
DLER3 |
DLER4 |
|
|
Maximum load最大載荷(≤6m/h) |
18t |
||
|
Rated load(Ton)額定載荷(≤6m/h) |
15t |
||
|
Lifting speed(m/min)起升速度 |
單速1.8 |
雙速0.5/1.8 |
變頻0.25~1.8 |
|
Motor Power(kw)電機功率 |
單速3*2 |
雙速1.1/3*2 |
變頻3*2 |
|
Rotation speed(r/min)轉速 |
單速1440 |
雙速430/1440 |
變頻200~1440 |
|
Motor insulation class電機絕緣等級 |
F |
||
|
Frequency(Hz)頻率 |
50 |
||
|
Power Supply工作電壓 |
Ac 380V L1 L2 L3〧 |
||
|
Control Volatage控制電壓 |
AC36V |
||
|
NO.of Load Chain鏈條回?cái)?shù) |
6 |
||
|
Spec.of Load Chain鏈條規格 |
11.2x34 |
||
|
Working level工作級別 |
M5 |
||
|
|

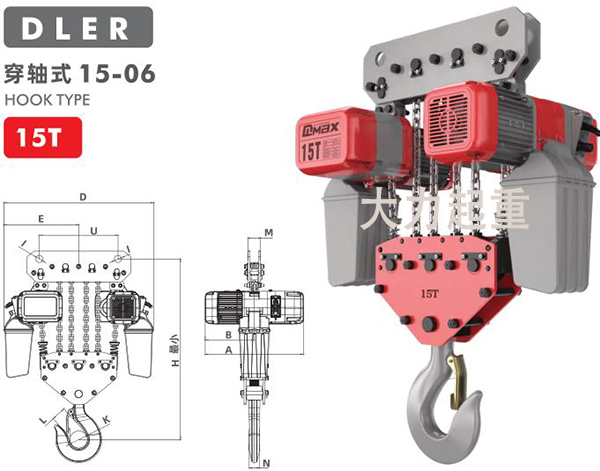

長度 |
|
H |
1155 |
|
A |
700 |
|
B |
350 |
|
D |
920 |
|
E |
560 |
|
I |
?54.5 |
|
M |
88 |
|
N |
80 |
|
K |
120 |
|
L |
96 |
